Nhà xuất bản: Structural Department, Atkins Dubal
Năm xuất bản: 2007
Quy trình mô hình hóa và phân tích
Việc sử dụng các tiêu chuẩn quốc tế tích hợp sẵn trong phần mềm
Tuân thủ các yêu cầu cụ thể của cơ quan chức năng địa phương

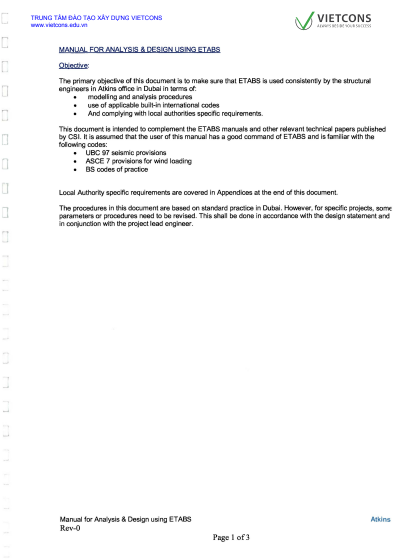

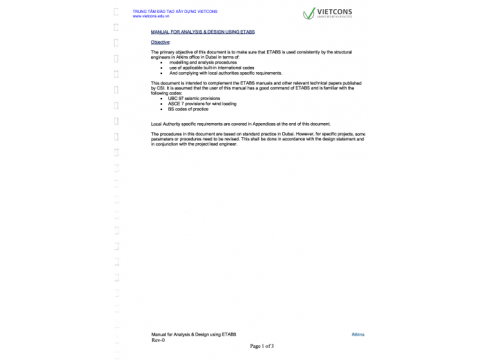

Tài liệu này nhằm bổ sung cho các hướng dẫn sử dụng ETABS và các tài liệu kỹ thuật liên quan khác do CSI công bố. Tài liệu này được xây dựng với giả định rằng người sử dụng đã có kiến thức vững về ETABS và quen thuộc với các tiêu chuẩn sau:
Quy định về động đất theo UBC 97
Quy định về tải trọng gió theo ASCE 7
Các tiêu chuẩn thiết kế của Anh quốc (BS Codes of Practice)
Những yêu cầu cụ thể của cơ quan chức năng địa phương được trình bày trong phần Phụ lục ở cuối tài liệu.
Các quy trình trong tài liệu này dựa trên thông lệ thiết kế tiêu chuẩn tại Dubai. Tuy nhiên, đối với từng dự án cụ thể, một số tham số hoặc quy trình có thể cần được điều chỉnh. Việc điều chỉnh này phải được thực hiện phù hợp với tuyên bố thiết kế và phối hợp với kỹ sư trưởng của dự án.

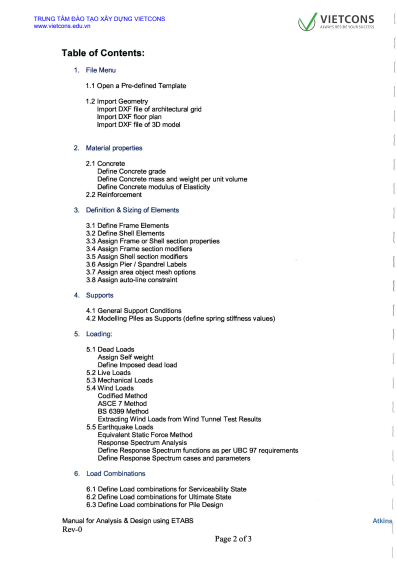

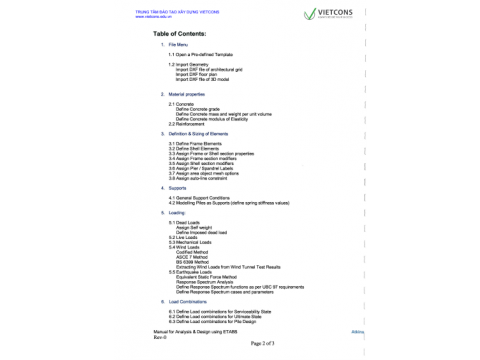

1. File Menu:
1.1 Open a Pre-defined Template
1.2 Import Geometry
Import DXF file of architectural grid
Import DXF floor plan
Import DXF file of 3D model
2. Material properties:
2.1 Concrete
Define Concrete grade
Define Concrete mass and weight per unit volume
Define Concrete modulus of Elasticity
2.2 Reinforcement
3. Definition & Sizing of Elements:
3.1 Define Frame Elements
3.2 Define Shell Elements
3.3 Assign Frame or Shell section properties
3.4 Assign Frame section modifiers
3.5 Assign Shell section modifiers
3.6 Assign Pier / Spandrel Labels
3.7 Assign area object mesh options
3.8 Assign auto-line constraint
4. Supports:
4.1 General Support Conditions
4.2 Modelling Piles as Supports (define spring stiffness values)
5. Loading:
5.1 Dead Loads
Assign Self weight
Define Imposed dead load
5.2 Live Loads
5.3 Mechanical Loads
5.4 Wind Loads
Codified Method
ASCE 7 Method
SS 6399 Method
Extracting Wind Loads from Wind Tunnel Test Results
5.5 Earthquake Loads
Equivalent Static Force Method
Response Spectrum Analysis
Define Response Spectrum functions as per USC 97 requirements
Define Response Spectrum cases and parameters
6. Load Combinations:
6.1 Define Load combinations for Serviceability State
6.2 Define Load combinations for Ultimate State
6.3 Define Load combinations for Pile Design
7. Analysis Options:
7.1 Dynamic analysis options (Ritz vs. Eigenvector)
7.2 P-Delta analysis options
For Local Authorities other than JAFZA
For JAFZA
8. Post-Analysis Checks:
8.1 Analysis log & results
Warnings
Global force balance
8.2 Deformed shape and modal animations
8.3 Modal characteristics (modal amplitude, mass participation ratio)

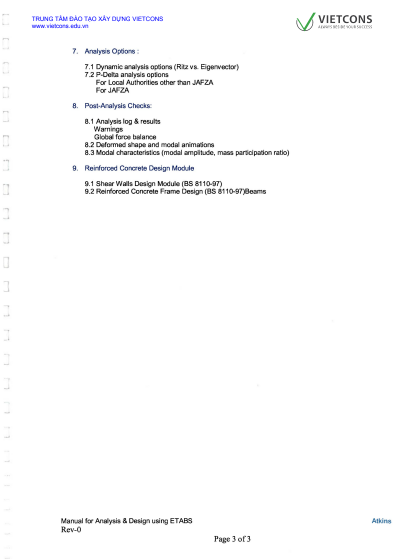

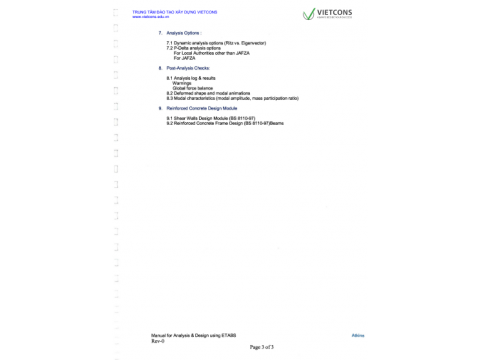

9. Reinforced Concrete Design Module
9.1 Shear Walls Design Module (BS 8110-97)
9.2 Reinforced Concrete Frame Design (BS 811 0-97)Beams
